Ferrite Cores




• Ferrite Cores

A variety of 'High Flux' Cores, Material: FeNiCu



'High Flux' Core Size 1:
Outer diameter
Length
Inner diameter
.................
.................
.................
28.0 mm
13.0 mm
15.9 mm


'High Flux' Core Size 2:
Outer diameter
Length
Inner diameter
.................
.................
.................
28.0 mm
20.0 mm
15.9 mm


'High Flux' Core Size 2 Long:
Outer diameter
Length
Inner diameter
.................
.................
.................
27.6 mm
28.2 mm
17.5 mm


'High Flux' Core Size 3:
Outer diameter
Length
Inner diameter
.................
.................
.................
34.7 mm
12.8 mm
20.6 mm


'High Flux' Core Size 4:
Outer diameter
Length
Inner diameter
.................
.................
.................
58.5 mm
12.6 mm
34.0 mm




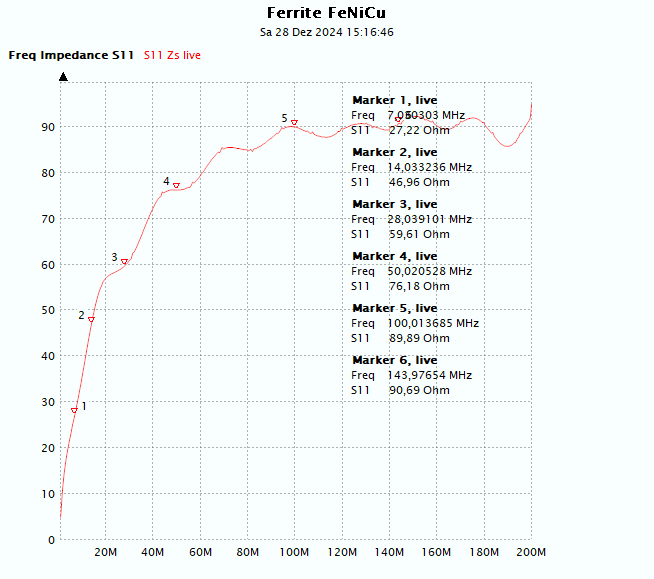

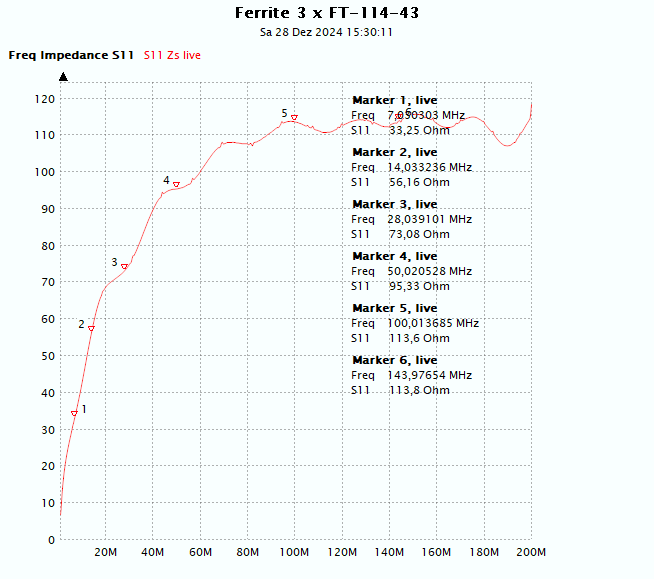

Ferrite Material FeNiCu is not a best specification for use on VHF / UHF as Materials 43 or 61 from NiZn show higher Impedance per size ... but it is sufficient even for demanding applications:


A single size 1 High Flux Core was used by the V31EME DXpedition (DG8NCO) on a 432 MHz 25 el. Yagi lasting 3 moon paths with 0.9 kW in WSJT enabling even a CW EME QSO with this single Yagi.

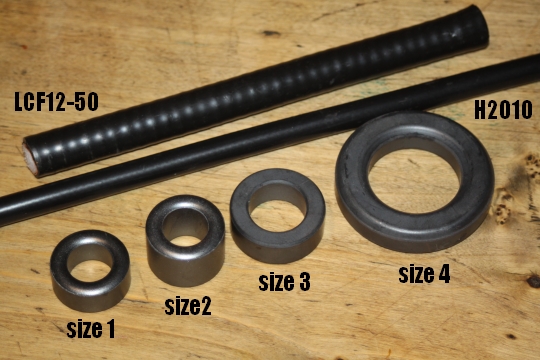

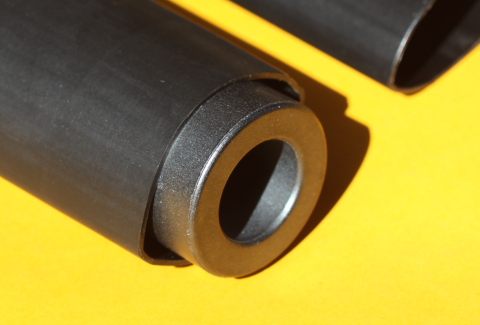

Size 1 and 2 cores fit tight on Cellflex LCF 12-50
(15.8 mm coax to 15.9 mm core inner diameter)

Size 1 and 2 on H2010 (10.3 mm coax)

Size 2 Long fits loosely on Cellflex LCF 12-50

Size 2 Long fits on Flexwell 3/8" CU 2Y 50OHM

These are surplus cores with material analysis but no other then the above
specification available.



Art. #   Description     Stock   Price
HF Core Size 1   High Flux Ferrite Core, 28.0 x 13.0 mm, bore 15.9 mm, used     € 1.90
HF Core Size 2   High Flux Ferrite Core, 28.0 x 20.0 mm, bore 15.9 mm, used     € 2.30
HF Core Size 2 Long   High Flux Ferrite Core, 27.6 x 28.2 mm, bore 17.5 mm, used     € 2.40
HF Core Size 3   High Flux Ferrite Core, 34.7 x 12.8 mm, bore 20.6 mm, used     € 2.50
HF Core Size 4   High Flux Ferrite Core, 58.5 x 12.6 mm, bore 34.0 mm, used     € 3.40


Prices incl. legal VAT. plus shipping costs
